Engineering Design Practice Highlights - EML 4024

Guided Projects

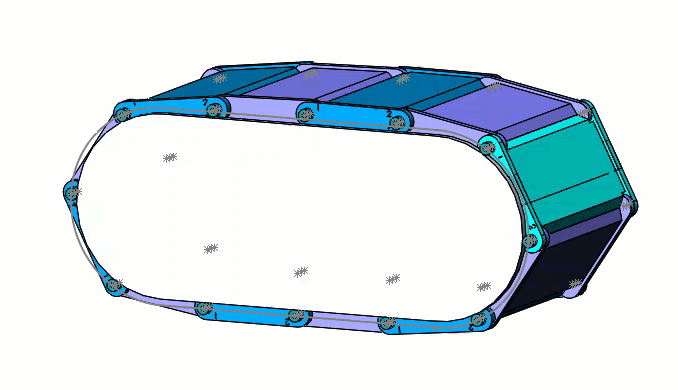

Project Details :Conveyor Belt
​
  • Parts provided to create Conveyor Belt Assembly.

  • Using SolidWorks Motion Analysis, Solid body Contacts, Gravity, and Linear Force was applied to create motion.

  • Largest challenge with this project was executing the correct Solid Body Contacts.

Conveyor Belt.gif

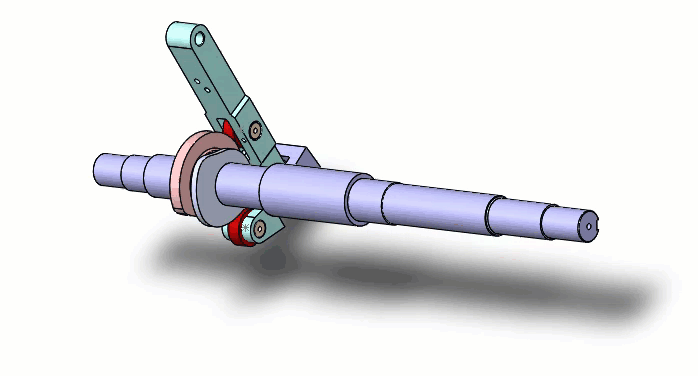

Project Details :Desmodromic CAM
​
  • Parts provided to create Desmodrimic CAM Assembly.

  • Using SolidWorks Motion Analysis, Solid body Contacts, Linear Motor, and Rotary Motor were used to create motion.

  • Interesting tools include: Hinge mates & Cam mates.

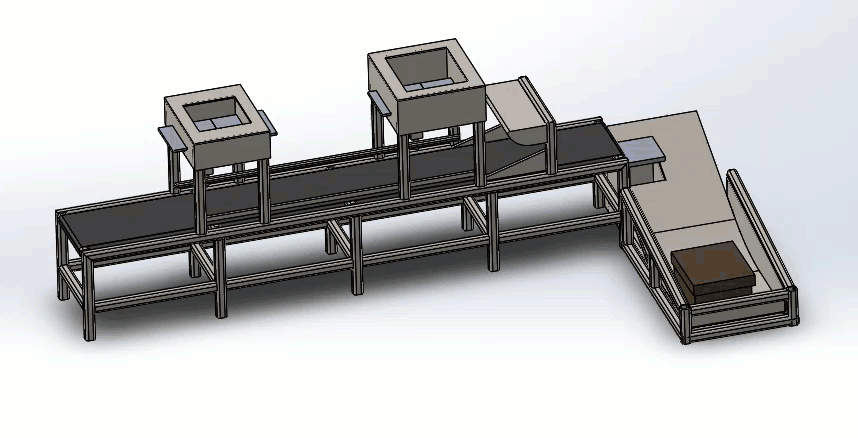

Project Details :Packaging Machine

  • Six different parts provided to create Packing Machine Assembly.

  • Using SolidWorks Motion Analysis, Solid Body Contacts, Gravity, 4 Linear Motors, and a Linear Spring were used to create motion seen.

  • "Event Based Motion" was used to create the timed motion sequence. Featuring 6 different tasks that included proximity sensors, time delays, and a motor turn on/off.

  • This project was by far my favorite featured in the class. I found that Event Based Motion is extremely interesting and I enjoyed problem solving the trigger points and time delays to create a full story.

Packing Machine.gif

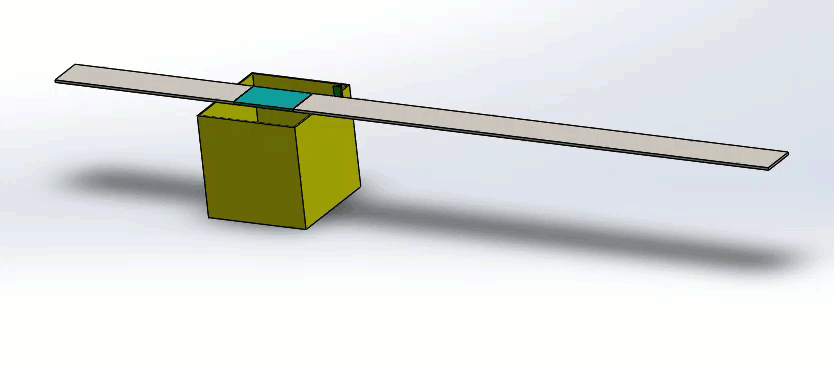

Project Details :Falling Box

  • 5 Parts were created from scratch using given dimensions, and put into a final assembly.

  • Using SolidWorks Motion Analysis: Gravity, 3 Solid Body Contacts, and 2 Linear Motors were applied to create motion seen.

  • Event Based Motion was used to have the red box trigger the green proximity sensor to open the teal sliding lid.

Falling Box.gif
